Product Summary
The LTC3723EGN-1#TR is a synchronous push-pull PWM controller. The LTC3723EGN-1#TR provides all of the control and protection functions necessary for compact and highly efficient, isolated power converters. High integration minimizes external component count, while preserving design flexibility. The robust push-pull output stages switch at half the oscillator frequency. Dead-time is independently programmed with an external resistor. Synchronous rectifier timing is adjustable to optimize efficiency. The applications of the LTC3723EGN-1#TR are (1)telecommunications, infrastructure power systems; (2)distributed power architectures.
Parametrics
LTC3723EGN-1#TR absolute maximum ratings: (1)VCC to GND (Low Impedance Source): –0.3V to 10V; (2)(Chip Self-Regulates at 10.3V)UVLO to GND: –0.3V to VCC; (3)All Other Pins to GND (Low Impedance Source): –0.3V to 5.5V; (4)VCC (Current Fed): 40mA; (5)VREF Output Current: Self-Regulated; (6)Operating Temperature: –40°C to 85°C; (7)Storage Temperature Range: –65°C to 125°C; (8)Lead Temperature (Soldering, 10sec): 300°C.
Features
LTC3723EGN-1#TR features: (1)High Efficiency Synchronous Push-Pull PWM; (2)1.5A Sink, 1A Source Output Drivers; (3)Supports Push-Pull, Full-Bridge, Half-Bridge, and Forward Topologies; (4)Adjustable Push-Pull Dead-Time and Synchronous Timing; (5)Adjustable System Undervoltage Lockout and Hysteresis; (6)Adjustable Leading Edge Blanking; (7)Low Start-Up and Quiescent Currents; (8)Current Mode (LTC3723-1)or Voltage Mode (LTC3723-2)Operation; (9)Single Resistor Slope Compensation; (10)VCC UVLO and 25mA Shunt Regulator; (11)Programmable Fixed Frequency Operation to 1MHz; (12)50mA Synchronous Output Drivers; (13)Soft-Start, Cycle-by-Cycle Current Limiting and Hiccup Mode Short-Circuit Protection; (14)5V, 15mA Low Dropout Regulator; (15)Available in 16-Pin SSOP Package.

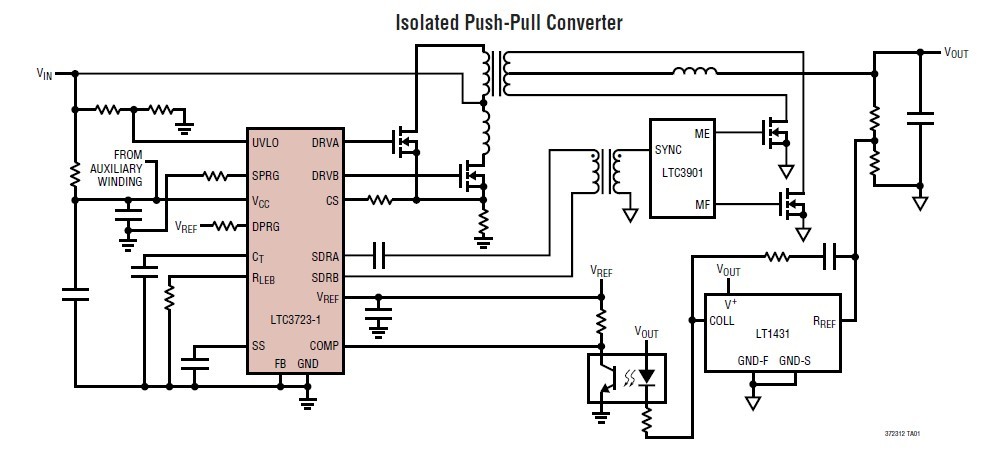

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC3723EGN-1#TR |
|
IC REG CTRLR FLYBK ISO CM 16SSOP |
Data Sheet |
|
|
||||||
|
LTC3723EGN-1#TRPBF |
|
IC REG CTRLR FLYBK ISO CM 16SSOP |
Data Sheet |
|
|
||||||
