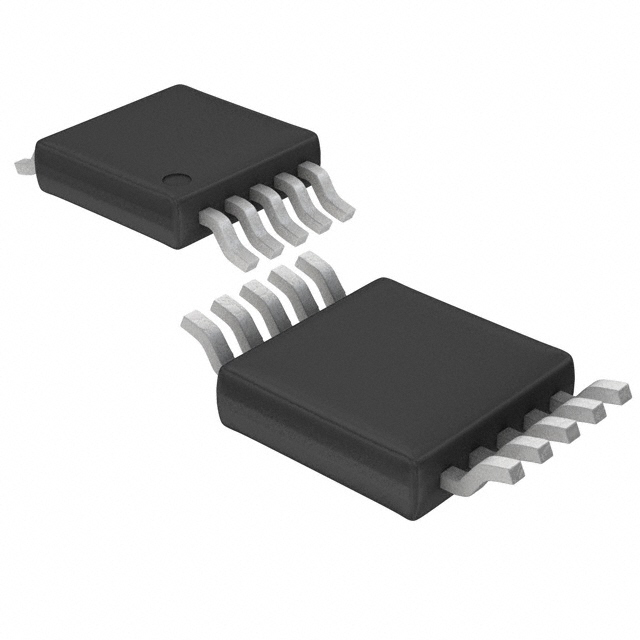

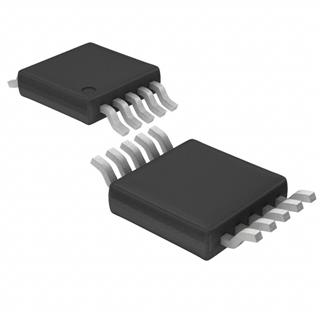

Product Summary

The LTC4211CMS#TR is a Hot Swap controller that allows a board to be safely inserted and removed from a live backplane. An internal high side switch driver controls the gate of an external N-channel MOSFET for supply voltages ranging from 2.5V to 16.5V. The LTC4211CMS#TR provides softstart and inrush current limiting during the start-up period which has a programmable duration. Two on-chip current limit comparators provide dual level overcurrent circuit breaker protection. The slow comparator trips at VCC – 50mV and activates in 20ms (or programmed by an external filter capacitor, MS only). The fast comparator trips at VCC – 150mV and typically responds in 300ns. The applications of the LTC4211CMS#TR are (1)electronic circuit breaker; (2)hot board insertion and removal (either on backplane or on removable card); (3)industrial high side switch/circuit breaker.

Parametrics

LTC4211CMS#TR absolute maximum ratings: (1)Supply Voltage (VCC): 17V Input Voltage FB, ON : -0.3V to 17V; (2)SENSE, FILTER: - 0.3V to VCC + 0.3V; (3)TIMER: -0.3V to 2V; (4)Output Voltage GATE: Internally Limited, RESET, FAULT: -0.3V to 17V; (5)Operating Temperature Range: 0°C to 70°C; (6)Storage Temperature Range: -65°C to 150°C; (7)Lead Temperature (Soldering, 10 sec): 300°C.

Features

LTC4211CMS#TR features: (1)Allows Safe Board Insertioand Removal from a Live Backplane; (2)Controls Supply Voltages from 2.5V to 16.5V; (3)Programmable Soft-Start with Inrush Current Limiting, No External Gate Capacitor Required; (4)Faster Turn-Off Time Because No External Gate Capacitor is Required; (5)Dual Level Overcurrent Fault Protection; (6)Programmable Response Time for Overcurrent Protectio(MS); (7)Programmable Overvoltage Protectio(MS); (8)Automatic Retry or Latched Mode Operatio(MS); (9)High Side Drive for aExternal N-Channel FET; (10)User-Programmable Supply Voltage Power-Up Rate; (11)FB PiMonitors VOUT and Signals RESET; (12)Glitch Filter Protects Against Spurious RESET Signal.

Diagrams

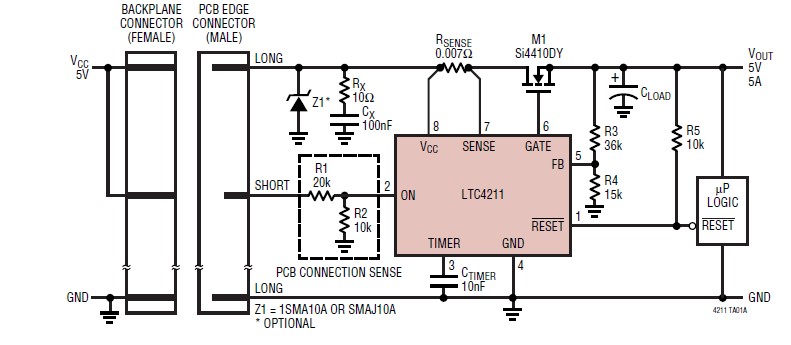

LTC4211CMS#TR pin connection
