Product Summary

The MIC5209BM is an efficient linear voltage regulator with very low dropout voltage, typically 10mV at light loads and less than 500mV at full load, with better than 1% output voltage accuracy. Designed especially for hand-held, battery-powered devices, the MIC5209BM features low ground current to help prolong battery life. An enable/shutdown pin on SO-8 and TO-263- 5 versions can further improve battery life with near-zero shutdown current. Key features include reversed-battery protection, current limiting, overtemperature shutdown, ultra-low-noise capability (SO-8 and TO-263-5 versions), and availability in thermally effi cient packaging. The MIC5209BM is available in adjustable or fixed output voltages. The MIC5209BM applications are: (1)Pentium II Slot 1 and Slot 2 support circuits; (2)Laptop, notebook, and palmtop computers; (3)Cellular telephones; (4)Consumer and personal electronics; (5)SMPS post-regulator/dc-to-dc modules; (6)High-effi ciency linear power supplies.

Parametrics

MIC5209BM absolute maximum ratings: (1)Supply Input Voltage (VIN): –20V to +20V; (2)Power Dissipation (PD): Internally Limited(3); (3)Junction Temperature (TJ)all except 1.8V: –40℃ to +125℃, 1.8V only : 0℃ to +125℃; (4)Lead Temperature (soldering, 5 sec.): 260℃; (5)Storage Temperature (TS): –65℃ to +150℃.

Features

MIC5209BM features: (1)Low 500mV maximum dropout voltage at full load; (2)Extremely tight load and line regulation; (3)Thermally-efficient surface-mount package; (4)Low temperature coeffi cient; (5)Current and thermal limiting; (6)Reversed-battery protection; (7)No-load stability; (8)1% output accuracy; (9)Ultra-low-noise capability in SO-8 and TO-263-5; (9)Guaranteed 500mA output over the full operating temperature range.

Diagrams

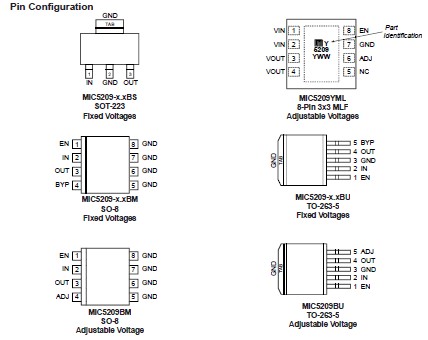

 MIC5209BM pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MIC5209BM
MIC5209BM


IC REG LDO ADJ .5A 8SOIC

Data Sheet

Negotiable
MIC5209BM TR
MIC5209BM TR


IC REG LDO ADJ .5A 8-SOIC

Data Sheet

Negotiable
