The MM908E622ACDWB is a high performance HC08 microcontroller with a SMARTMOS analog control IC. The MM908E622ACDWB includes flash memory, a timer, enhanced serial communications interface (ESCI), a 10 bit analog-to-digital converter (ADC), serial peripheral interface (SPI) (only internal), and an internal clock generator module (ICG). The analog control die provides four half-bridge and three high side outputs with diagnostic functions, a Hall-effect sensor input, analog inputs, voltage regulator, window watchdog, and local interconnect network (LIN) physical layer. The single package solution, together with LIN, provides optimal application performance adjustments and space saving PCB design. The MM908E622ACDWB is well suited for the control of automotive high end mirrors. The MM908E622ACDWB was designed and developed as a highly integrated and cost effective solution for automotive and industrial applications.
Parametrics
MM908E622ACDWB absolute maximum ratings: (1)Supply VoltageAnalog Chip Supply Voltage under Normal Operation (Steady-state)VSUP(SS): -0.3 to 28V; (2)Supply Voltage Analog Chip Supply Voltage under Transient Conditions(1)VSUP(PK): -0.3 to 40V; (3)Supply Voltage MCU Chip Supply Voltage VDD: -0.3 to 5.5V; (4)Maximum Microcontroller VSS Output Current IMVSS: 100 mA; (5)Maximum Microcontroller VDD Input Current IMVDD: 100 mA.
Features
MM908E622ACDWB features: (1)High performance M68HC908EY16 core; (2)16K bytes of on-chip flash memory, 512 bytes of RAM; (3)Two 16-bit, 2-channel timers; (4)LIN physical layer interface; (5)Autonomous MCU watchdog / MCU supervision; (6)One analog input with switchable current source; (7)Four low RDS(ON)half-bridge outputs; (8)Three low RDS(ON)high side outputs; (9)Wake-up and 2/3-pin hall-effect sensor input; (10)12 microcontroller I/Os.

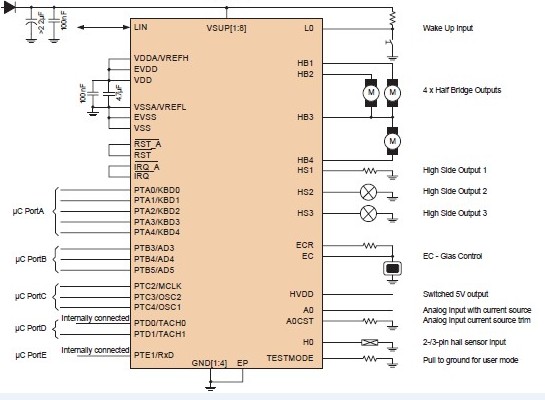

Diagrams
