Product Summary

The OP293ESZ is a single-supply operational amplifier. It features a combination of high precision, low supply current and the ability to operate at low voltages. For high performance in single supply systems the input and output ranges include ground, and the outputs swing from the negative rail to within 600 mV of the positive supply. For low voltage operation the OP293ESZ can operate down to 1.7 volts or ±0.85 volts. The applications of the OP293ESZ are (1)Digital Scales; (2)Strain Gages; (3)Portable Medical Equipment; (4)Battery Powered Instrumentation; (5)Temperature Transducer Amplifier.

Parametrics

OP293ESZ absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Input Voltage: ±18 V; (3)Differential Input Voltage: ±18 V; (4)Output Short-Circuit Duration to Gnd: Indefinite; (5)Storage Temperature Range: –65 to +150℃; (6)Operating Temperature Range: –40 to +125℃; (7)Junction Temperature Range: –65 to +150℃; (8)Lead Temperature Range (Soldering, 60 sec): +300℃.

Features

OP293ESZ features: (1)Operates from +1.7 V to 618 V; (2)Low Supply Current: 15 mA/Amplifier; (3)Low Offset Voltage: 75 mV; (4)Outputs Sink and Source: 68 mA; (5)No Phase Reversal; (6)Single or Dual Supply Operation; (7)High Open-Loop Gain: 600 V/mV; (8)Unity-Gain Stable.

Diagrams

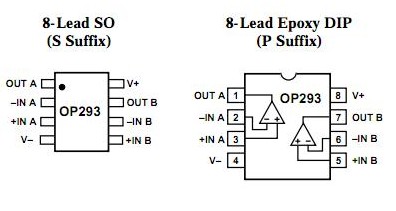

OP293ESZ pin connection
