Product Summary

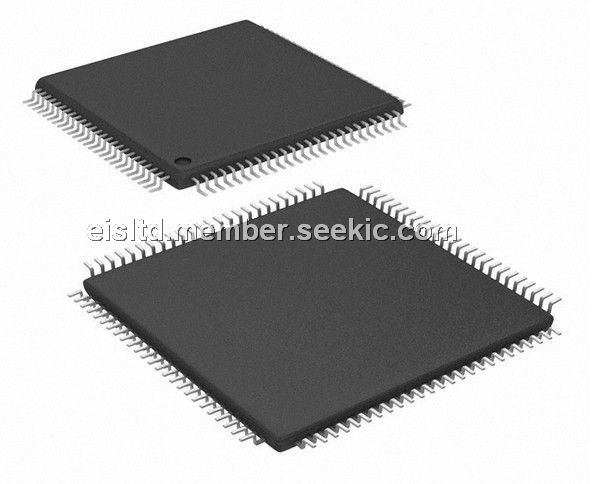

The PIC32MX795F512L-80I/PF is a high-Performance, USB, CAN and Ethernet 32-bit Flash Microcontroller.

Parametrics

PIC32MX795F512L-80I/PF absolute maximum ratings: (1)Ambient temperature under bias: -40℃ to +105℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: -0.3V to +4.0V; (4)Voltage on any pin that is not 5V tolerant, with respect to VSS: -0.3V to (VDD + 0.3V); (5)Voltage on any 5V tolerant pin with respect to VSS when VDD ≥ 2.3V: -0.3V to +5.5V; (6)Voltage on any 5V tolerant pin with respect to VSS when VDD < 2.3V: -0.3V to +3.6V; (7)Voltage on VBUS with respect to VSS: -0.3V to +5.5V; (8)Voltage on VCORE with respect to VSS: -0.3V to 2.0V; (9)Maximum current out of VSS pin(s): 300 mA; (10)Maximum current into VDD pin(s): 300 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by all ports: 200 mA; (14)Maximum current sourced by all ports: 200 mA.

Features

PIC32MX795F512L-80I/PF features: (1)MIPS32 M4K 32-bit core with 5-stage pipeline; (2)80 MHz maximum frequency; (3)1.56 DMIPS/MHz (Dhrystone 2.1) performance at zero Wait state Flash access; (4)Single-cycle multiply and high-performance divide unit; (5)MIPS16e mode for up to 40% smaller code size; (6)Two sets of 32 core register files (32-bit) to reduce interrupt latency; (7)Prefetch Cache module to speed execution from Flash.

Diagrams

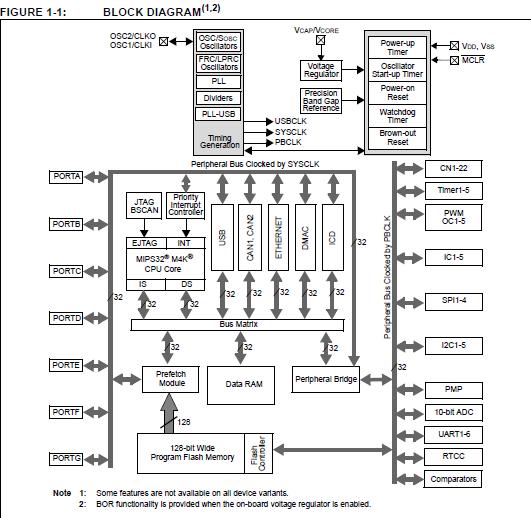

PIC32MX795F512L-80I/PF block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PIC32MX795F512L-80I/PF
PIC32MX795F512L-80I/PF
Microchip Technology
32-bit Microcontrollers (MCU) 512KB Flash 128KBRAM USB 2xCAN 8 DMA
Data Sheet
0-63: $5.44
63-100: $4.93
