Product Summary

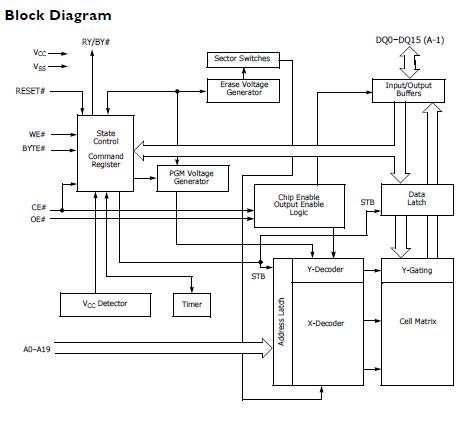

The S29AL016D70TFI20H is a 16 Mbit, 3.0 Volt-only Flash memory organized as 2,097,152 bytes or 1,048,576 words. The device is offered in 48-ball FBGA, and 48-pin TSOP packages. The word-wide data (x16) appears on DQ15–DQ0; the byte-wide (×8) data appears on DQ7–DQ0. The S29AL016D70TFI20H is designed to be programmed in-system with the standard system 3.0 volt VCC supply. A 12.0 V VPP or 5.0 VCC are not required for write or erase operations. The device can also be programmed in standard EPROM programmers. The S29AL016D70TFI20H offers access times of 70 ns and 90 ns allowing high speed microprocessors to operate without wait states.

Parametrics

S29AL016D70TFI020H absolute maximum ratings: (1)Storage Temperature Plastic Packages: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -65℃ to +125℃; (3)Voltage with Respect to Ground VCC: -0.5 V to +4.0 V; (4)A9, OE#, and RESET#: 0.5 V to +12.5 V; (5)All other pins: -0.5 V to VCC+0.5 V; (6)Output Short Circuit Current: 200 mA.

Features

S29AL016D70TFI020H features: (1)Single power supply operation, Full voltage range: 2.7 to 3.6 volt read and write operations for battery-powered applications; (2)Manufactured on 200nm process technology, Fully compatible with 0.23 μm Am29LV160D and MBM29LV160E devices; (3)Flexible sector architecture, One 16 Kbyte, two 8 Kbyte, one 32 Kbyte, and thirtyone 64 Kbyte sectors (byte mode); One 8 Kword, two 4 Kword, one 16 Kword, and thirtyone 32 Kword sectors (word mode); (4)Sector Protection features, A hardware method of locking a sector to prevent any program or erase operations within that sector; Sectors can be locked in-system or via programming; equipment; Temporary Sector Unprotect feature allows code changes in previously locked sectors; (5)Unlock Bypass Program Command, Reduces overall programming time when issuing multiple program command sequences; (6)Top or bottom boot block configurations available; (7)Compatibility with JEDEC standards, Pinout and software compatible with single-power supply Flash; Superior inadvertent write protection.
