Product Summary
The SFR9214TF is an advanced power MOSFET.
Parametrics
SFR9214TF absolute maximum ratings: (1)Drain-to-Source Voltage, VDSS: -250V; (2)Continuous Drain Current (TC = 25℃), ID: -1.53A; Continuous Drain Current (TC = 100℃), ID: -0.97A; (3)Drain Current-Pulsed, IDM: -6.1A; (4)Gate-to-Source Voltage, VGS: ±30V; (5)Single Pulsed Avalanche Energy, EAS: 110MJ; (6)Avalanche Current, TAR: -1.53A; (7)Repetitive Avalanche Energy, EAR: 1.9MJ; (8)Peak Diode Recovery dv/dt, dv/dt: -4.8V/ns; (9)Total Power Dissipation (TA = 25℃), PD: 19W; Total Power Dissipation (TC = 25℃) Linear Derating Factor, PD: 0.15W; (10)Operating Junction and Storage Temperature Range, TJ, TSTG: -55 to +150℃; (11)Maximum Lead Temp. for Soldering Purposes, 1/8＂ from case for 5-seconds, TL: 300℃.
Features
SFR9214TF features: (1)Avalanche Rugged Technology; (2)Rugged Gate Oxide Technology; (3)Lower Input Capacitance; (4)Improved Gate Charge; (5)Extended Safe Operating Area; (6)Lower Leakage Current: 10 μA (Max.) @ VDS = -250V; (7)Lower RDS(ON): 3.15 Ω (Typ.).

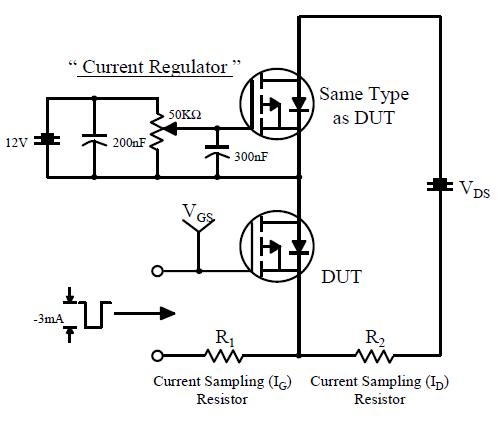

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SFR9214TF |
Fairchild Semiconductor |
MOSFET |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
SFR9014TF |
Fairchild Semiconductor |
MOSFET P-CH/60V/5.3A/0.5OHM |
Data Sheet |
Negotiable |
|
||||
|
SFR9024TF |
Fairchild Semiconductor |
MOSFET PCh/60V/7.8a/0.28Ohm |
Data Sheet |
Negotiable |
|
||||
|
SFR9024TM |
Fairchild Semiconductor |
MOSFET PCh/60V/7.8a/0.28Ohm |
Data Sheet |
Negotiable |
|
||||
|
SFR9034TF |
Fairchild Semiconductor |
MOSFET P-CH/60V/14A/0.14OHM |
Data Sheet |
Negotiable |
|
||||
|
SFR9034TM |
Fairchild Semiconductor |
MOSFET P-CH/60V/14A/0.14OHM |
Data Sheet |
Negotiable |
|
||||
|
SFR9110TM |
Fairchild Semiconductor |
MOSFET PCh/100V/2.8a/1.2Ohm |
Data Sheet |
Negotiable |
|
||||
