Product Summary
The SKY13286-359LF is a high isolation SPDT absorptive switch. The device is an ideal component for base station applications in which synthesizer isolation is critical. Its applications include GSM, PCS, WCDMA base stations, 2.4 and 5.8 GHz ISM devices, Wireless local loops.
Parametrics
SKY13286-359LF absolute maximum ratings: (1)supply voltage: 2.7 to 5.5V; (2)RF input power: 1W; (3)operating temperature: -40 to 95℃; (4)storage temperature: -65 to 150℃.
Features

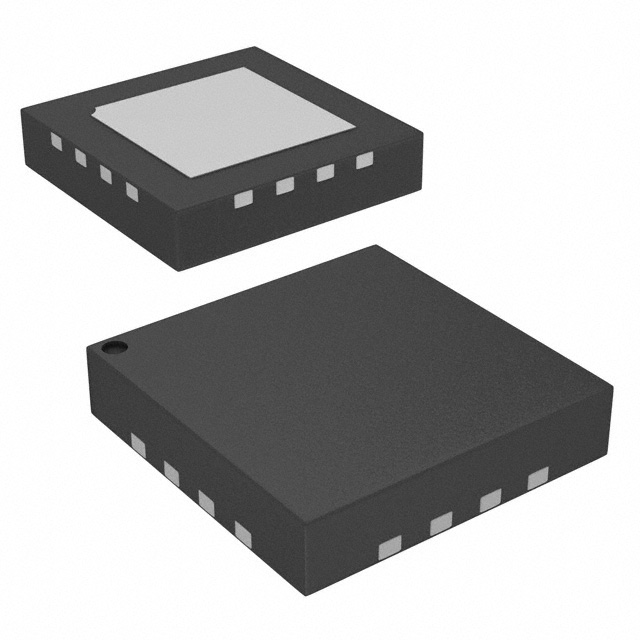

SKY13286-359LF features: (1)Single, positive voltage control: 0 to 3 and 0 to 5 V; (2)High isolation 64 dB at 1 GHz and 2 GHz; (3)Integrated silicon CMOS driver; (4)Absorptive; (5)Small, QFN (16-pin, 4 x 4 mm) Pb-free package.

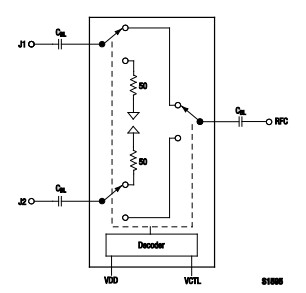

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SKY13286-359LF |
Skyworks Solutions, Inc. |
RF Switch ICs .1-6.0GHz SPDT IL 1.8dB Max |
Data Sheet |
|
|
||||||||||||
 |
SKY13286-359LF-EVB |
|
IC SW SPDT 100MHZ-6GHZ 16-QFN |
Data Sheet |
|
|
||||||||||||
