Product Summary

The TS972IPT is an operational amplifier which is able to operate with voltages as low as ±1.35V and featuring output rail-to-rail signal swing. The TS972IPT boasts characteristics that make them particularly well suited for portable and batterysupplied equipment. Very low noise and low distortion characteristics make them ideal for audio pre-amplification. The TS972IPT is applicated for Portable equipment (CD players, PDA), Portable communications (cell phones, pagers), Instrumentation & sensoring and Professional audio circuits.

Parametrics

TS972IPT absolute maximum ratings: (1)VCC Supply voltage: 12 V; (2)Vid Differential Input Voltage: ±1 V; (3)Vin Input Voltage: VDD-0.3 to VCC+0.3 V; (4)Toper Operating Free Air Temperature Range: -40 to +125℃; (5)Tstg Storage Temperature Range: -65 to +150℃; (6)Tj Maximum Junction Temperature: 150℃; (7)Rthja Thermal Resistance Junction to Ambient: 120℃/W; (8)Rthjc Thermal Resistance Junction to Case: 37℃/W; (9)Lead Temperature (soldering, 10sec): 260℃.

Features

TS972IPT features: (1)Rail-to-rail output voltage swing ±2.4V @ VCC = ±2.5V; (2)Very low noise level: 4nV/√Hz; (3)Ultra low distortion: 0.003%; (4)High dynamic features: 12MHz, 4V/μs; (5)Operating range: 2.7V to 10V; (6)ESD protection (2kV); (7)Latch-up immunity (class A); (8)Available in: SOT23-5 and QFN8 (3x3) micropackage.

Diagrams

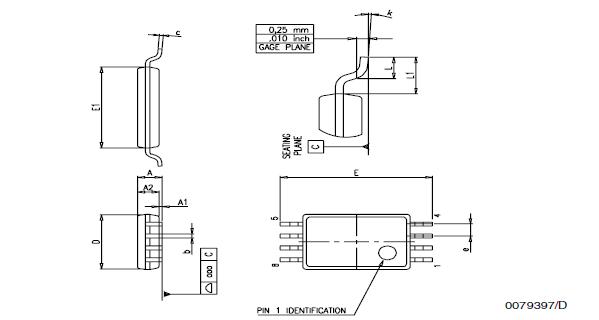

TS972IPT package dimensions
