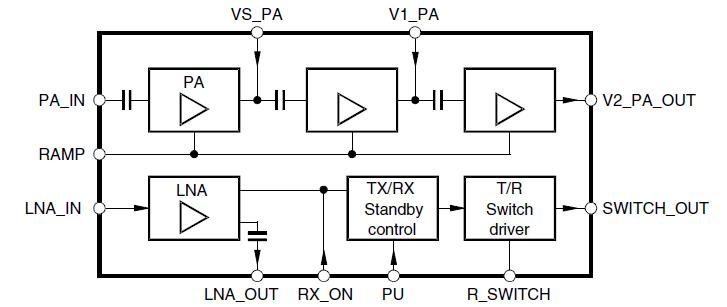

The U7004B-MFSG3 is a monolithic SiGe transmit/receive front end IC with power amplifier, 50-Ω internal matching, low-noise amplifier and T/R switch driver. The U7004B-MFSG3 is especially designed for operation in TDMA systems like DECT. Due to the ramp-control feature and a very low quiescent current, an external switch transistor for VS is not required.
Parametrics
U7004B-MFSG3 absolute maximum ratings: (1)Supply voltage pins 6, 10, 13 and 16 (no RF) VS: 5 V; (2)Duty cycle PA: 50 %; (3)Burst duration PA: 5 ms; (4)Junction temperature Tj: 150 ℃; (5)Storage temperature Tstg: -40 to +125 ℃; (6)Input power PA pin 15 PinPA: +10 dBm; (7)Input power LNA pin 4 PinLNA: -5 dBm.
Features
U7004B-MFSG3 features: (1)Single 3-V Supply Voltage; (2)High Power-added Efficient Power Amplifier (Pout typically 26.5 dBm); (3)Ramp-controlled Output Power; (4)Low-noise Preamplifier (NF typically 1.8 dB); (5)Biasing for External PIN Diode T/R Switch; (6)Current-saving Standby Mode; (7)Few External Components.
