AD7581CQ

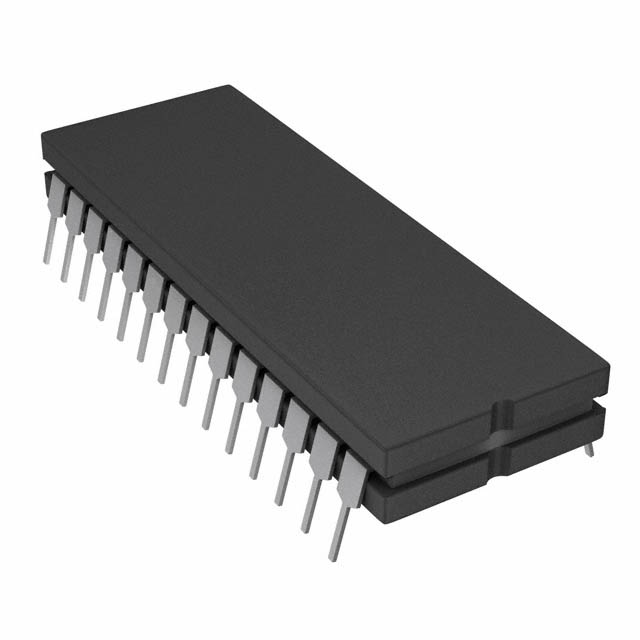

AD7581CQ, CMOS uP-COMPATIBLE 8-BIT, 8-CHANNEL DAS, 28-CDIP, 7V, 5mA, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~1.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~1.60

PartNumber:: AD7581CQ

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-08

From Other Seller

Part Number:AD7581CQ
US $0.20 - 1.60
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AD7581CQ is a microprocessor compatible 8 bit, 8 channel, memory buffered, data-acquisition system on a monolithic CMOS chip. The AD7581CQ consists of an 8 bit successive approximation A/D converter, an 8 channel multiplexer, 8×8 dual-port RAM, three-state DATA drivers (for interface), address latches and microprocessor compatible control logic. The device interfaces directly to 8080, 8050, Z80, 6800 and other microprocessor systems. The successive approximation conversion takes place on a continuous, channel sequencing, base using microprocessor control signals for the clock. Data is automatically transferred to its proper location in the AD7581CQ at the end of each conversion.

Parametrics

AD7581CQ absolute maximum ratings: (1)VDD to AGND: +7V; (2)VDD to DGND: +7V; (3)AGND to DGND: -0.3V, VDD; (4)Digital input voltage to DGND: -0.3V, VDD +0.3V; (5)Digital output voltage to DGND: -0.3V, VDD +0.3V; (6)CLK input voltge to DGND: -0.3V, VDD +0.3V; (7)VREF to AGND: ±25V; (8)VBOFS to AGND: ±17V; (9)AIN: ±17V; (10)Operating temperature range, commercial: 0 to +70℃; Industrial: -25℃ to +85℃; (11)Storage temperature: -65℃ to +150℃; (12)Lead temperature: +300℃; (13)Power dissipation to +75℃: 1000mW; derate above +75℃ by: 10mW/℃.
