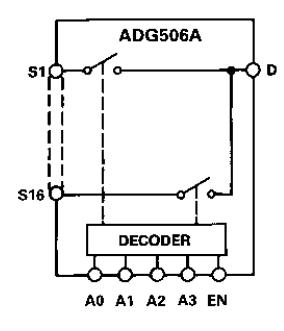

The ADG506AKRZ is a CMOS monolithic analog multiplexer with 16 channels and dual 8 channels, respectively. The ADG506AKRZ switches one of 16 inputs to a common output, depending on the state of four binary addresses and an enable input. The ADG506AKRZ is designed on an enhanced LC2MOS process, which gives an increased signal capability of VSS to VDD and enables operation over a wide range of supply voltages. The device can operate comfortably anywhere in the 10.8 V to 16.5 V single or dual supply range. The ADG506AKRZ also features high switching speeds and low RON.
Parametrics
ADG506AKRZ absolute maximum ratings: (1)VDD to VSS: 44 V; (2)VDD to GND: 25 V; (3)VSS to GND: -25 V; (4)Analog Inputs, Voltage at S, D: VSS -2 V to VDD; + 2 V or 20 mA, Whichever Occurs First; (5)Continuous Current, S or D: 20 mA; (6)Pulsed Current S or D 1 ms Duration, 10% Duty Cycle: 40 mA; (7)Digital Inputs2 Voltage at A, EN: VSS -4 V.
Features
ADG506AKRZ features: (1)44 V Supply Maximum Rating; (2)VSS to VDD Analog Signal Range; (3)Single/Dual Supply Specifications; (4)Wide Supply Ranges (10.8 V to 16.5 V); (5)Extended Plastic Temperature Range (-40℃ to +85℃); (6)Low Power Dissipation (28 mW max); (7)Low Leakage (20 pA typ); (8)Available in 28-Lead DIP, SOIC, PLCC, TSSOP and LCCC Packages; (9)Superior Alternative to: DG506A, Hl-506, DG507A, Hl-507.
