Product Summary

The ADM706AR is a microprocessor supervisory circuit. The ADM706AR is suitable for monitoring 5 V power supplies/batteries and can also monitor microprocessor activity. The ADM706AR provides power-supply monitoring circuitry that generate a reset output during power-up, power- down, and brownout conditions. The reset output remains operational with VCC as low as 1 V. Independent watchdog monitoring circuitry is also provided. This is activated if the watchdog input has not been toggled within 1.60 seconds.

Parametrics

ADM706AR absolute maximum ratings: (1)Digital Output Current: 20 mA; (2)Power Dissipation, N-8 PDIP: 727 mW; (3)VCC: －0.3 V to +6 V; (4)All Other Inputs: －0.3 V to VCC + 0.3 V; (5)Storage Temperature Range: －65℃to +150℃; (6)ESD Rating: >4.5 kV.

Features

ADM706AR features: (1)200 ms reset pulse width; (2)Debounced TTL/CMOS manual reset input (MR); (3)Independent watchdog timer (ADM705/ADM706); (4)1.60 sec timeout (ADM705/ADM706); (5)Active high reset output (ADM707/ADM708); (6)Voltage monitor for power-fail or low battery warning; (7)Superior upgrade for MAX705 to MAX708.

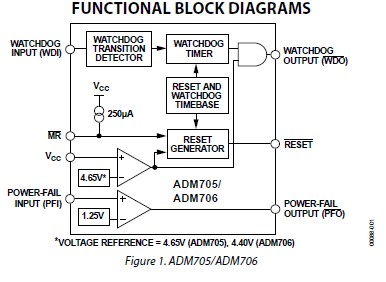

Diagrams

ADM706AR pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADM706ARZ-REEL
ADM706ARZ-REEL

IC SUPERVISOR MPU 4.40V WD 8SOIC
Data Sheet
0-2500: $0.73
ADM706ARZ-REEL7
ADM706ARZ-REEL7

IC SUPERVISOR MPU 4.40V WD 8SOIC
Data Sheet
0-1000: $0.76
ADM706ARZ
ADM706ARZ

IC SUPERVISOR MPU 4.4 WD 8SOIC
Data Sheet
0-1: $1.53
1-10: $1.36
10-100: $1.12
100-250: $1.01
250-500: $0.91
500-1000: $0.76
1000-2500: $0.73
ADM706AR-REEL7
ADM706AR-REEL7

IC SUPERVISOR MPU 4.40V WD 8SOIC
Data Sheet
0-1000: $0.88
ADM706AR-REEL
ADM706AR-REEL

IC SUPERVISOR MPU 4.40V WD 8SOIC
Data Sheet
0-2500: $0.84
ADM706AR
ADM706AR

IC SUPERVISOR MPU 4.4 WD 8SOIC
Data Sheet
0-196: $1.30
