BAS16H

BAS16H, High-speed switching diode, SOD-123F, 100V, 500mA, NXP Semiconductors

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~1.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~1.60

PartNumber:: BAS16H

Brand:: NXP Semiconductors - nxp | Pack: SOD | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-07

From Other Seller

Part Number:BAS16H
US $0.20 - 1.60
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

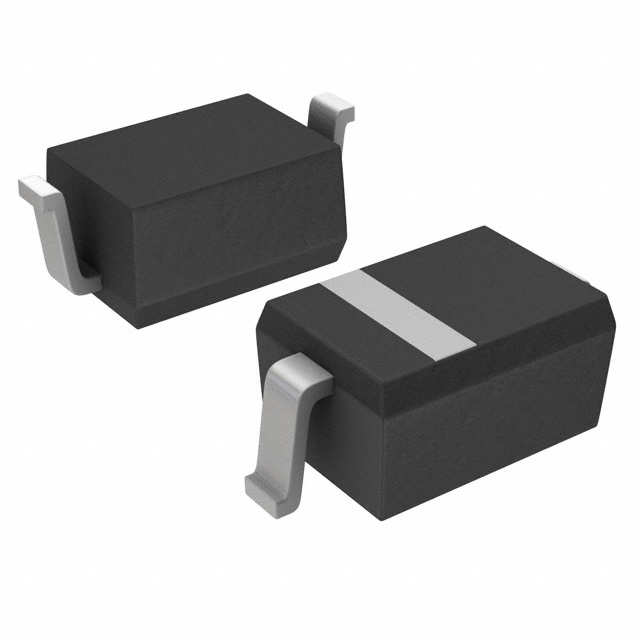

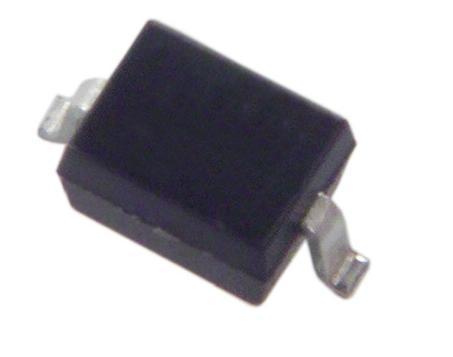

The BAS16H is a high-speed switching diode fabricated in planar technology, and encapsulated in a SOD123F small and flat plastic package. The applications of the BAS16H include High-speed switching in hybrid thick and thin-film circuits, Mobile communication, Digital (still) cameras, Personal Digital Assistants (PDA), Personal Computer Memory Card International Association (PCMCIA) cards.

Parametrics

BAS16H absolute maximum ratings: (1)repetitive peak reverse voltage, VRRM: 100 V; (2)reverse voltage, VR: 100 V; (3)forward current, IF: 215 mA; (4)repetitive peak forward current, IFRM: 500 mA; (5)non-repetitive peak forward current, tp = 50 ms, IFSM: 4 A; tp = 1 ms, IFSM: 2 A; tp = 10 ms, IFSM: 1.5 A; (6)total power dissipation, Ptot: 0.38 W; (7)junction temperature, Tj: 150℃; (8)ambient temperature, Tamb: -65 to +150℃; (9)storage temperature, Tstg: -65 to +150℃.

Features

BAS16H features: (1)High switching speed: max. 4 ns; (2)Continuous reverse voltage: max. 100 V; (3)Repetitive peak reverse voltage: max. 100 V; (4)Repetitive peak forward current: max. 500 mA; (5)Small and flat plastic package.
