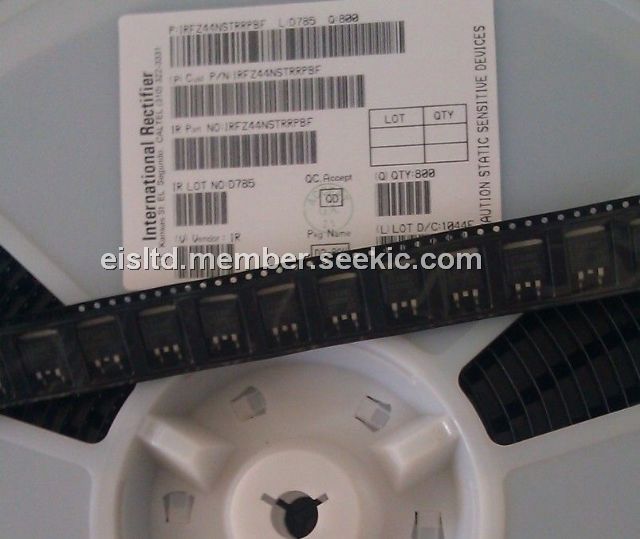

IRFZ44NS

IRFZ44NS, HEXFET Power MOSFET, TO-263, 55V, 49A, International Rectifier

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~0.30

PartNumber:: IRFZ44NS

Brand:: International Rectifier - IR | Pack: TO | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-22

From Other Seller

Part Number:IRFZ44NS
US $0.20 - 0.30
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
SLA4060

US $0.80 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRFZ44NS is a HEXFET power MOSFET from International Rectifier, utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that the IRFZ44NS is well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The D2Pak is a surface mount power package capable of accommodating die sizes up to HEX-4. It provides the highest power capability and the lowest possible on-resistance in any existing surface mount package. The D2Pak is suitable for high current applications because of its low internal connection resistance and can dissipate up to 2.0W in a typical surface mount application.

Parametrics

IRFZ44NS absolute maximum ratings: (1)Continuous Drain Current, VGS @ 10V, ID @ TC = 25℃: 49A; (2)Continuous Drain Current, VGS @ 10V, ID @ TC = 100℃: 35 A; (3)Pulsed Drain Current, IDM: 160A; (4)Power Dissipation, PD @TA = 25℃: 3.8 W; (5)Power Dissipation, PD @TC = 25℃: 94 W; (6)Linear Derating Factor: 0.63 W/℃; (7)Gate-to-Source Voltage, VGS: ±20 V; (8)Avalanche Current, IAR: 25 A; (9)Repetitive Avalanche Energy, EAR: 9.4 mJ; (10)Peak Diode Recovery dv/dt, dv/dt: 5.0 V/ns; (11)Operating Junction and, TJ: -55 to + 175℃; (12)Soldering Temperature, for 10 seconds, TSTG: 300℃(1.6mm from case).
