Product Summary
The LM339M is an independent precisionvoltage comparator with an off set voltage specification a slow as 2 mV max for all four comparators. These weredesigned specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply currentdrain is independent of the magnitude of the power supplyvoltage. The LM339M also has a unique characteristic in that the input common-mode voltage range includesground, even though operated from a single power supply voltage.
Parametrics
LM339M absolute maximum ratings (1)Supply Voltage, V:+36 VDC or ±18 VDC; (2)Differential Input Voltage:36 VDC; (3)Input Voltage:-0.3 VDC to +36 VDC; (4)Input Current (VIN<-0.3 VDC):50 mA; (5)Output Short-Circuit to GND: Continuous; (6)Storage Temperature Range:-65°C to +150°C; (7)Lead Temperature(Soldering, 10 seconds):260°C
Features
LM339M features(1)Wide supply voltage range; (2)Very low supply current drain (0.8 mA) — independent of supply voltage; (3)Low input biasing current:25 nA; (4)Low input offset current:±5nA; (5)Offset voltage:±3mV; (6)Input common-mode voltage range includes GND; (7)Differential input voltage range equal to the power supply voltage; (8)Low output saturation voltage:250 mV at 4 mA; (9)Output voltage compatible with TTL, DTL, ECL, MOSand CMOS logic systems.

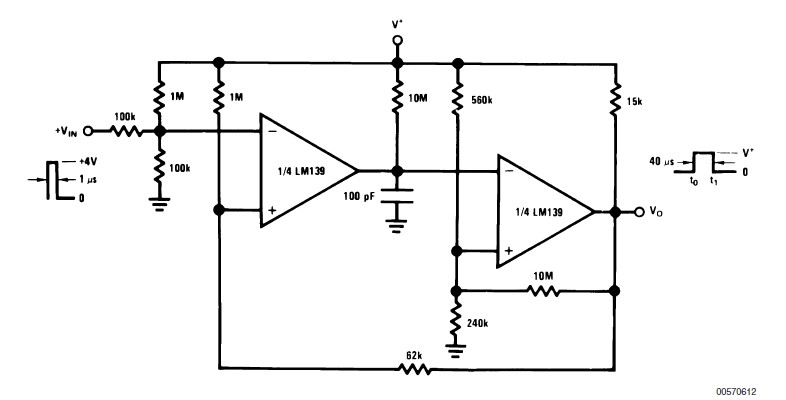

Diagrams

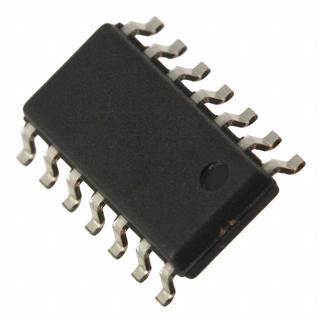

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM339M |
Fairchild Semiconductor |
Comparator ICs Quad Comparator |
Data Sheet |
|
|
||||||||||||
|
LM339M/NOPB |
National Semiconductor (TI) |
Comparator ICs LOW PWR LOW OFFSET VLTG QUAD COMPARATOR |
Data Sheet |
|
|
||||||||||||
|
LM339MX |
Fairchild Semiconductor |
Comparator ICs SOP-14 Quad |
Data Sheet |
|
|
||||||||||||
|
LM339MX/NOPB |
National Semiconductor (TI) |
Comparator ICs LOW PWR LOW OFFSET VLTG QUAD COMPARATOR |
Data Sheet |
|
|
||||||||||||
