Product Summary

The MIC44F19YML is a highspeed single MOSFET driver capable of sinking and sourcing 6A for driving capacitive loads. With delay times of less than 15ns and rise times into a 1000pF load of 10ns, the MOSFET driver is ideal for driving large gate charge MOSFET in power supply applications. The MIC44F19 is an inverting driver suited for driving PChannel MOSFET. Fabricated using Micrel’s proprietary BiCMOS/DMOS process for low power consumption and high efficiency, the MIC44F19YML translates TTL or CMOS input logic levels to output voltage levels that swing within 25mV of the positive supply or ground. The applications of the MIC44F19YML include Synchronous switch-mode power supplies, Secondary side synchronous rectification.

Parametrics

MIC44F19YML absolute maximum ratings: (1)Supply Voltage (Vdd): 14V; (2)UVLO/Enable Voltage (VUVLO/EN): 14V; (3)Input Voltage (VIN): (VS + 0.1V) to (GND-5V); (4)Output Voltage (VOUT): 14V; (5)Junction Temperature (TJ): 150℃; (6)Ambient Storage Temperature (Tdd): -65℃ to +150℃; (7)Lead Temperature (10 sec): 300℃; (8)ESD Rating, Pins 1,2,3,5,6,7,8: 2KV; Pin 4: 500V.

Features

MIC44F19YML features: (1)4.5V to 13.2V input operating range; (2)6A peak output current; (3)High accuracy ±5% enable input threshold; (4)High speed switching capability, 10ns rise time in 1000pF load; <15ns propagation delay time; (5)Flexible UVLO function, 4.2V internally set UVLO; Programmable with external resistors; (6)Latch-up protection to >500mA reverse current on the output pin; (7)Enable function; (8)Thermally enhanced ePAD MSOP-8 package option; (9)Miniature 2mm x 2mm MLF-8 package option; (10)Pb-free packaging.

Diagrams

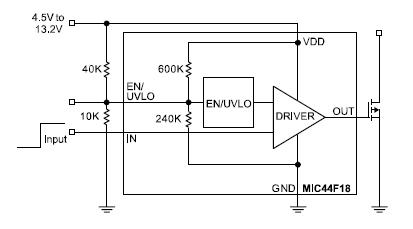

MIC44F19YML block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MIC44F19YML TR
MIC44F19YML TR

IC MOSFET DRIVER 6A INV 8-MLF
Data Sheet
0-5000: $0.60
5000-10000: $0.59
10000-25000: $0.58
