Product Summary
The TS974IDT is an operational amplifiers which is able to operate with voltages as low as ±1.35V and featuring output rail-to-rail signal swing. The TS974IDT boasts characteristics that make them particularly well suited for portable and batterysupplied equipment. Very low noise and low distortion characteristics make them ideal for audio pre-amplification. The TS974IDT is applicated for Portable equipment (CD players, PDA), Portable communications (cell phones, pagers), Instrumentation & sensoring and Professional audio circuits.
Parametrics
TS974IDT absolute maximum ratings: (1)VCC Supply voltage: 12 V; (2)Vid Differential Input Voltage: ±1 V; (3)Vin Input Voltage: VDD-0.3 to VCC+0.3 V; (4)Toper Operating Free Air Temperature Range: -40 to +125℃; (5)Tstg Storage Temperature Range: -65 to +150℃; (6)Tj Maximum Junction Temperature: 150℃; (7)Rthja Thermal Resistance Junction to Ambient: 103℃/W; (8)Rthjc Thermal Resistance Junction to Case: 31℃/W; (9)Lead Temperature (soldering, 10sec): 260℃.
Features
TS974IDT features: (1)Rail-to-rail output voltage swing ±2.4V @ VCC = ±2.5V; (2)Very low noise level: 4nV/√Hz; (3)Ultra low distortion: 0.003%; (4)High dynamic features: 12MHz, 4V/μs; (5)Operating range: 2.7V to 10V; (6)ESD protection (2kV); (7)Latch-up immunity (class A); (8)Available in: SOT23-5, QFN8 (3x3) micropackage.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

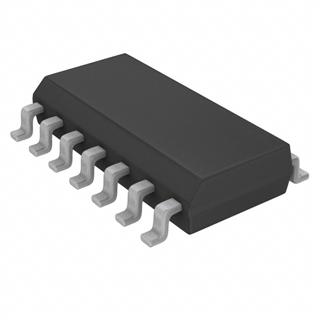

 TS974IDT |
STMicroelectronics |
Operational Amplifiers - Op Amps Quad Lo-Noise R-to-R |
Data Sheet |
|
|
||||||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||||||
|
TS971IYDT |
|
IC OP AMP R-R LOW NOISE 8-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
TS971IYLT |
|
IC OP AMP R-R LOW NOISE SOT-23-5 |
Data Sheet |
|
|
||||||||||||||||||
|
TS974IDT |
STMicroelectronics |
Operational Amplifiers - Op Amps Quad Lo-Noise R-to-R |
Data Sheet |
|
|
||||||||||||||||||
|
TS974IYD |
STMicroelectronics |
Operational Amplifiers - Op Amps Output rail to rail Lo noise Op Amp |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
TS974IN |
STMicroelectronics |
Operational Amplifiers - Op Amps Quad Lo-Noise R-to-R |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
TS974IYDT |
STMicroelectronics |
Operational Amplifiers - Op Amps Output rail to rail Lo noise Op Amp |
Data Sheet |
Negotiable |
|
||||||||||||||||||
